DN1-G60xxN General Control Mode User Manual
DN1-G60xxN General Control Mode User Manual
用户6097用户6097用户1841用户18412023年12月26日修改
👍
Key Highlights：
•
Low-voltage DC Driver；
•
Support single encoder；
•
Support current levels from 3 Arms ~ 10 Arms；
•
Support voltage range of 12 V ~ 60 V；
•
Support communication control modes of CANopen、Modbus and Pulse；
•

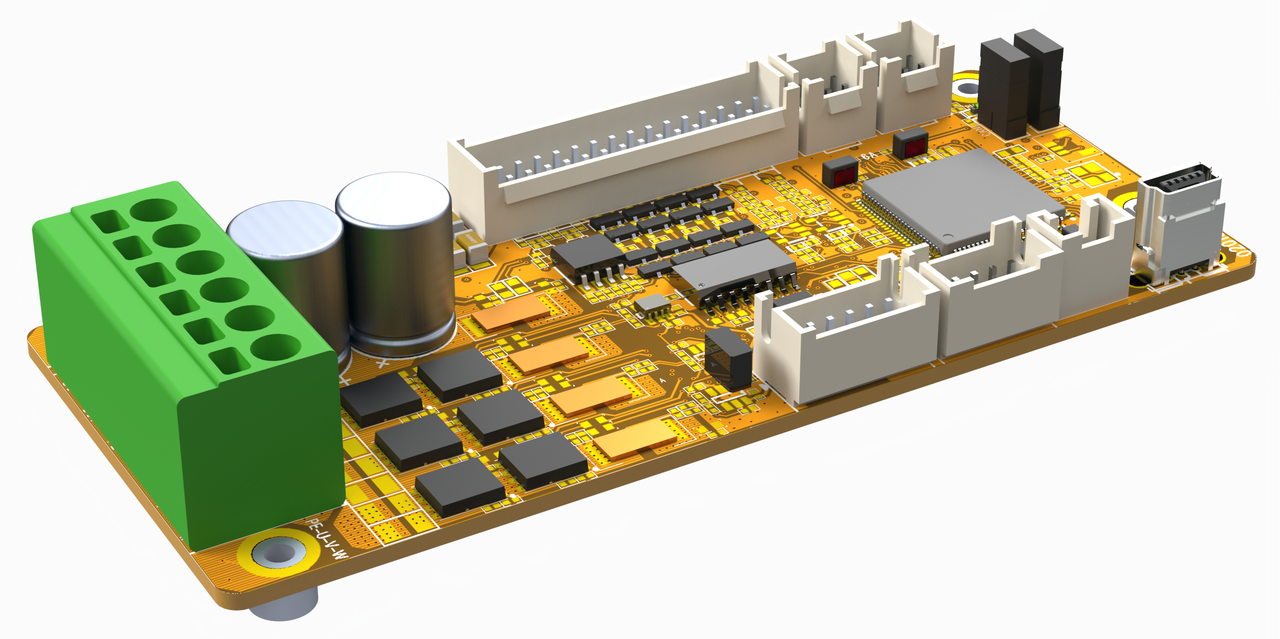

single board hardware；
DN1-G60xxN General Control Mode（CANopen & Modbus & Pulse）
1.
Safety Precautions
Safety Statement
1.
Please read and follow the precautions before installing, operating and maintaining the products.
2.
Please follow all safety precautions mentioned in the product labels and manual for the sake of personal and equipment safety when installing, operating and maintaining the products.
3.
The "Caution", "Warning" and "Danger" in the manual do not mean all safety precautions that shall be followed, and are only supplements for all safety precautions.
4.
The products shall be used in an environment that meets the requirements of design specifications; otherwise, failures might be caused. Functional abnormalities or component damages caused by failing to follow the relevant instructions are not covered in the product warranty.
5.
Our company will not bear any legal responsibility for any personal safety accident and property loss caused by failing to operate the products according to the instructions.
Definition of Safety Level
• Meaning that if failing to operate according to the instruction, death, serious injury and fire will probably be caused. | |
• Meaning that if failing to operate according to the instruction, death, serious injury and fire can be caused. | |
• Meaning that if failing to operate according to the instruction, moderate or minor injuries and fire may be caused. |
❗
The safety precautions must be followed for the sake of safety.
Overall Precautions
• Please read this manual for the sake of safe operation of the products. • Please keep this manual properly and ensure that it is provided to the end user. • Do not remove the cover, cable, connector and optional devices when the servo unit is powered on; otherwise, electric shock, interrupted operation or burnout will probably be caused. | |
• Please operate according to the power specifications (DC, voltage and current); otherwise, burnout, electric shock or fire can be caused. • Be sure that the grounding terminals of the servo unit and servo motor are connected with the grounding electrode; otherwise, electric shock or fire can be caused. • Do not disassemble, repair or refit the products; otherwise, fire or failure can be caused.Disassembled, repaired or refit products are not covered in our warranty. • The products shall be installed correctly by skilled people according to the specifications; otherwise, electric shock or injury can be caused.When starting operation after connecting with the machine, please make sure the equipment can be stopped at any time; otherwise, injury can be caused. • Never touch the inside of the products; otherwise, electric shock can be caused. |
